Implementing Multi-Agent Systems Using MCP: A Guide for AI Architects

TL;DR

Scaling AI today means moving beyond monolithic models toward multi-agent architectures, autonomous, specialized agents working in coordination.

MCP (Model Context Protocol) powers this shift by acting as a standardized layer for agent-to-agent communication, think of it as the “USB-C” of AI ecosystems.

Core Components:

• Lead Agent: Orchestrates planning and task delegation
• Subagents: Specialized executors (e.g., researcher, coder, analyst)
• MCP Tooling Layer: Unified interface for secure, scalable tool access
• A2A Protocol: Enables real-time agent collaboration

Key Benefits:

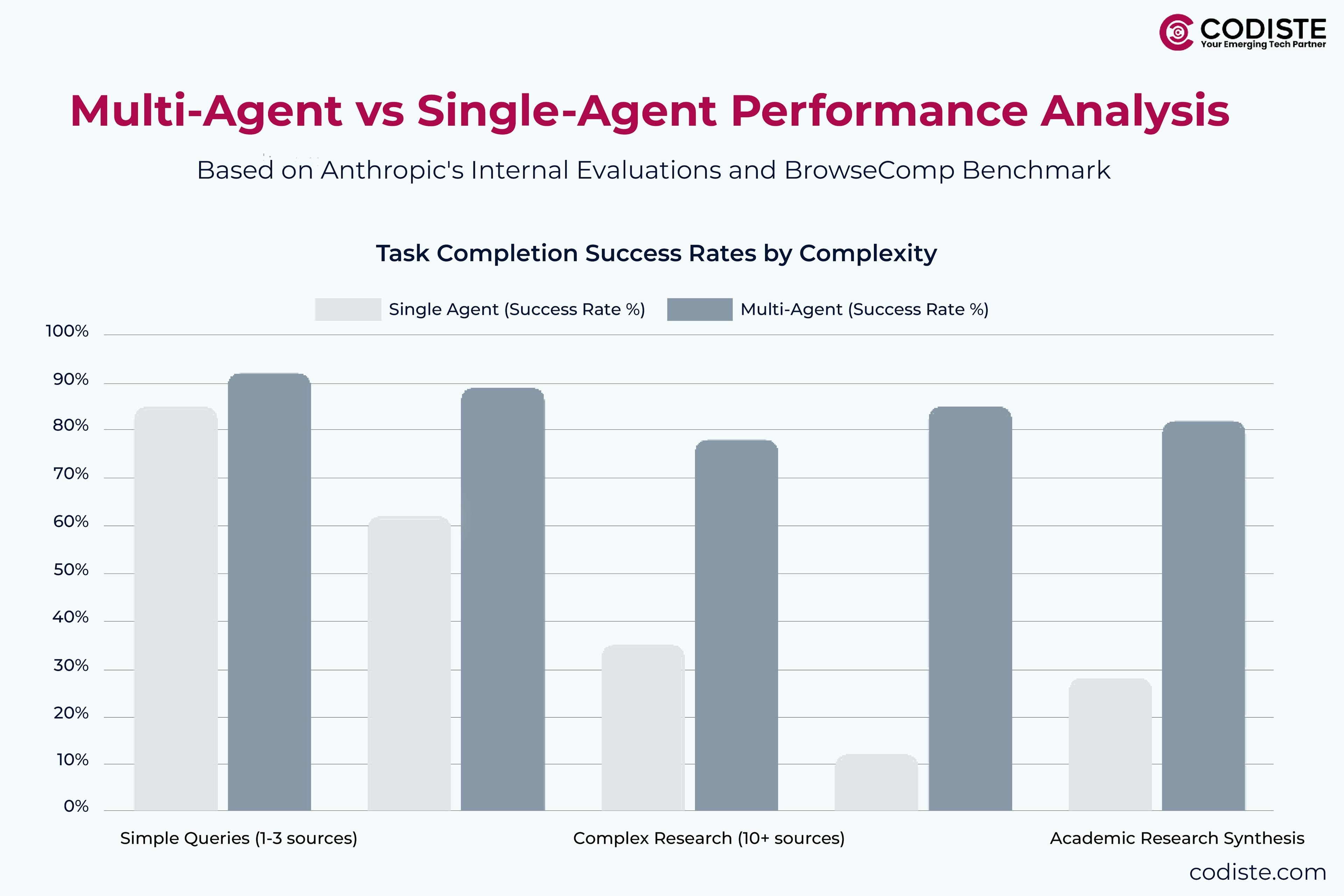

• 90%+ performance boost over single-agent setups
• Modular scaling, better fault tolerance, easier debugging
• Foundation for autonomous, continuously learning AI systems

Ideal For:

• Fintech intelligence automation
• Knowledge mining and reporting
• AI-powered decision support

The AI advantage no longer lies in size; it lies in orchestration.
Multi-agent systems, driven by protocols like MCP, are how forward-thinking teams will scale AI responsibly and effectively.

Introduction

AI capabilities are expanding more quickly than most teams can incorporate them, thus system architecture is more important than ever. Beyond proof-of-concept AI, CTOs and innovation leaders are pushing for the next competitive leap in smarter coordination, not simply better models. This blog examines how MCP-powered multi-agent architecture is laying the groundwork for intelligent, scalable automation in high-stakes settings like finance.

1. Defining Agentic Systems

Agentic systems represent a paradigm shift from traditional software architectures to autonomous entities that can reason, plan, and act independently. These systems possess several key characteristics:

• Autonomy: Agents can operate independently, making decisions based on their objectives and environmental feedback
• Reactivity: They respond dynamically to changes in their environment or task requirements
• Proactivity: Agents can initiate actions to achieve goals rather than merely responding to stimuli
• Tool Integration: Modern agents leverage external tools and data sources to extend their capabilities

The Power of Multi-Agent Systems (MAS)

Multi-agent architecture solutions amplify the capabilities of individual agents through:

Delegation and Specialization: Complex tasks can be decomposed into specialized subtasks, with each agent optimized for specific domains like data retrieval, analysis, or content generation in multi-agent AI frameworks.

Parallel Processing: Unlike sequential processing, multi agent collaboration enables multiple agents to work simultaneously, dramatically reducing task completion time and increasing throughput.

Scalability: As complexity grows, additional specialized agents can be added without redesigning the entire multi-agent architecture.

Fault Tolerance: If one agent fails, others can continue operating, providing system resilience through AI agent collaboration.

MCP as the Enabling Protocol

The Model Context Protocol serves as the "universal interface" that standardizes how AI agents interact with external tools, data sources, and services. Think of MCP as the "USB-C port" for AI applications; it provides a consistent, reliable way for agents to access the tools they need without custom integrations for each service.

MCP addresses critical challenges in agent-tool integration for scaling AI agent systems:

• Standardization: Unified JSON-RPC interface across all tools
• Discoverability: Tools can advertise their capabilities dynamically
• Security: Built-in authentication and authorization mechanisms for secure multi-agent AI workflows
• Observability: Standardized logging and monitoring capabilities

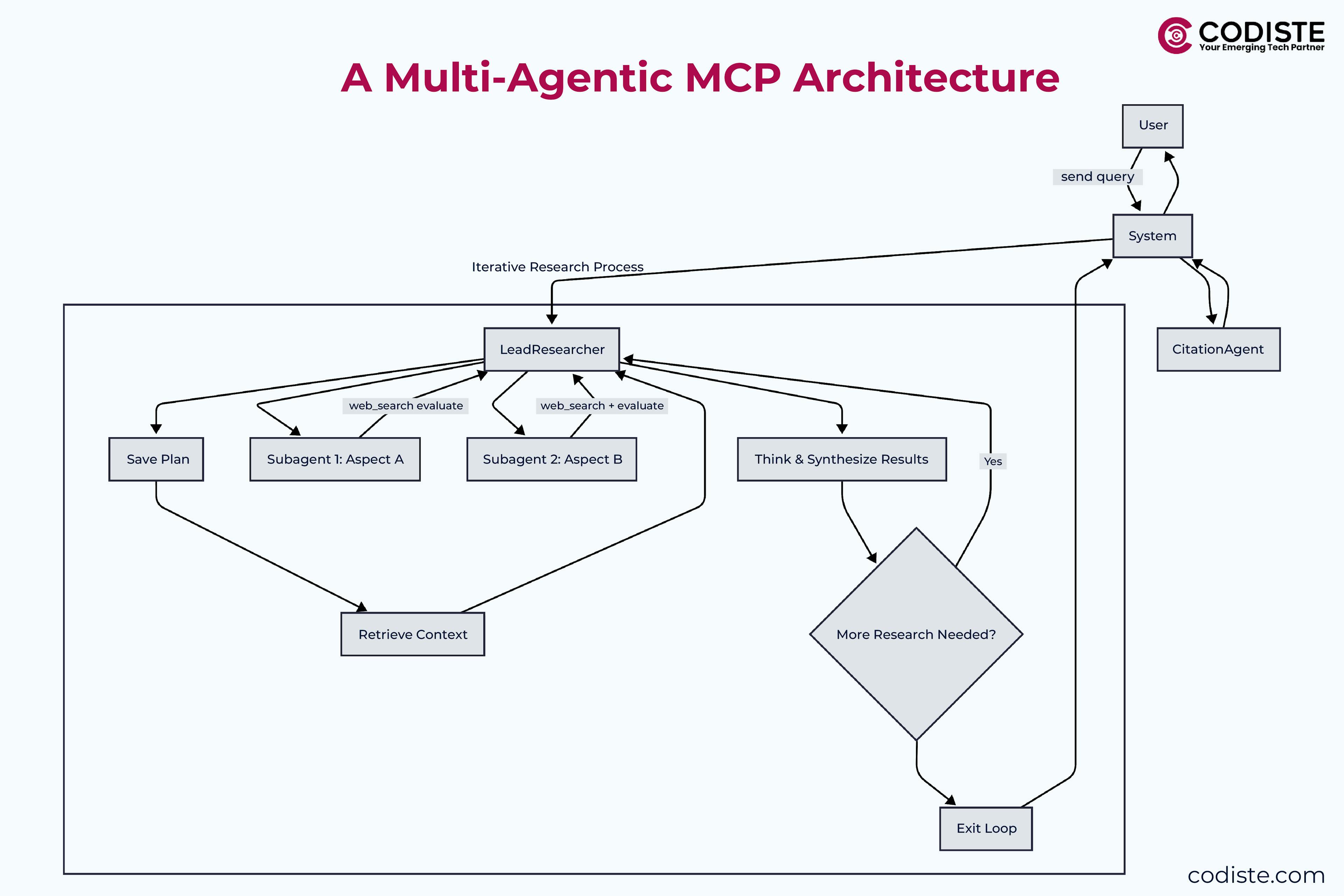

2. Core Components of a Multi-Agentic MCP Architecture

2.1 Agents: The Autonomous Workers

In our LLM multi-agent architecture, agents are autonomous entities with specialized roles and capabilities:

Characteristics of Effective Agents:

• Domain Specialization: Each agent excels in specific areas (research, analysis, content generation)
• MCP Compliance: All agents use standardized MCP protocols for tool interactions
• State Management: Agents maintain context and memory across multi-turn interactions
• Error Handling: Robust failure recovery and graceful degradation mechanisms

Agent Types:

• Research Agents: Specialized in information gathering and source validation for multi-agent architecture systems
• Analysis Agents: Focus on data processing, pattern recognition, and insight generation
• Content Agents: Expert in various forms of content creation and formatting
• Coordination Agents: Manage workflow orchestration and task distribution for multi-agent collaboration

2.2 Tool Interfaces via MCP

MCP standardizes the agent-tool interaction layer through a well-defined protocol structure:

MCP Protocol Structure:

JSON
{
  "jsonrpc": "2.0",
  "method": "tools/call",
  "params": {
    "name": "search_documents",
    "arguments": {
      "query": "AI agent architectures",
      "limit": 10
    }
  },
  "id": "request-1"
}

 Key Advantages:

• Reusability: Tools can be shared across multiple multi-agent AI frameworks and applications
• Observability: Standardized logging enables comprehensive monitoring for scaling AI agent systems
• Versioning: Tools can evolve while maintaining backwards compatibility in multi-agent architecture deployments
• Testing: Consistent interfaces enable systematic testing and validation

MCP Capability Types:

• Tools: Functions that agents can call with user approval
• Resources: File-like data that agents can read (API responses, documents)
• Prompts: Pre-written templates for specific tasks

2.3 Coordinator / Lead Agent

The Lead Agent serves as the orchestrator of the entire multi-agent architecture system:

Core Responsibilities:

• Task Decomposition: Breaking complex objectives into manageable, parallelizable subtasks
• Resource Allocation: Determining the appropriate number and types of subagents needed
• Context Management: Maintaining overall system state and memory across long-running processes
• Quality Control: Evaluating subagent outputs and ensuring coherence
• User Interface: Serving as the primary interaction point with end users

Orchestration Patterns:

• Planning Phase: Analyze user requests and develop execution strategies for multi-agent workflows with MCP
• Delegation Phase: Spawn appropriate subagents with clear objectives
• Monitoring Phase: Track progress and adjust strategies as needed in AI agent collaboration
• Synthesis Phase: Combine subagent results into coherent final outputs

2.4 Subagents: Specialized Workers

Subagents are lightweight, focused agents that execute specific tasks using MCP-enabled tools:

Design Principles:

• Single Responsibility: Each subagent focuses on one clear objective
• Minimal Dependencies: Subagents operate independently to enable true parallelism
• Bounded Context: Clear scope prevents agents from wandering into irrelevant areas
• Result-Oriented: Subagents are evaluated on output quality rather than process adherence

Operational Characteristics:

• Parallel Execution: Multiple subagents can run simultaneously in multi-agent architecture systems
• Tool Specialization: Each subagent has access to tools relevant to its domain
• Adaptive Behavior: Subagents can adjust their approach based on intermediate findings through AI agent collaboration
• Efficient Communication: Lightweight result sharing with the Lead Agent

2.5 Citation/Validation Agent (Optional)

For applications requiring high factual accuracy and auditability:

Validation Functions:

• Source Verification: Ensuring all claims are backed by credible sources
• Citation Formatting: Standardizing reference formats across outputs
• Fact Checking: Cross-referencing claims against multiple sources
• Quality Assessment: Evaluating source credibility and relevance

Integration Points:

• Post-Processing: Validates final outputs before user delivery
• Real-Time: Provides ongoing validation during subagent execution
• Batch Processing: Handles validation for large volumes of content

3. Workflow and Execution Strategy

3.1 Initialization Phase

The system begins when a user or external system provides a high-level task:

Lead Agent Planning Process:

1. Task Analysis: Understanding the scope, complexity, and requirements
2. Resource Assessment: Determining available tools and agent capabilities
3. Strategy Development: Creating an execution plan with clear milestones
4. Subagent Configuration: Defining roles, objectives, and success criteria

Key Considerations:

• Complexity Scaling: Simple queries might need only 1 agent with 3-10 tool calls, while complex research could require 10+ subagents in multi-agent architecture deployments
• Tool Mapping: Ensuring each subagent has access to appropriate MCP tools
• Parallel Opportunities: Identifying tasks that can be executed simultaneously through multi-agent collaboration

3.2 Parallel Execution Phase

This phase represents the core value proposition of multi-agent systems:

Coordination Mechanisms:

• Task Distribution: Lead Agent dispatches specific objectives to subagents
• Resource Allocation: Managing tool access and preventing conflicts
• Progress Monitoring: Tracking completion status and identifying bottlenecks
• Dynamic Adjustment: Spawning additional agents or modifying strategies as needed

Communication Patterns:

• Broadcast: Lead Agent sends instructions to all relevant subagents in multi-agent AI frameworks
• Point-to-Point: Direct communication between Lead Agent and individual subagents
• Status Updates: Regular progress reports from subagents to the lead agent for effective AI agent collaboration

3.3 Aggregation Phase

The Lead Agent collects and synthesizes results from multiple subagents:

Synthesis Activities:

• Data Integration: Combining information from multiple sources
• Conflict Resolution: Handling contradictory information between subagents
• Gap Analysis: Identifying missing information or incomplete coverage
• Quality Filtering: Removing low-quality or irrelevant results

Validation Options:

• Automated Validation: Using rule-based systems for basic quality checks
• Citation Agent: Routing results through specialized validation agents
• Human Review: Incorporating human oversight for critical applications

3.4 Output Generation Phase

The final phase produces polished, user-ready results:

Output Formatting:

• Structured Results: Organizing information in logical, accessible formats
• Citation Integration: Embedding proper source attribution throughout
• Visual Enhancement: Adding charts, diagrams, or other visual elements
• Executive Summary: Providing high-level overviews for complex results

4. Protocol Design: MCP in Depth

4.1 MCP Architecture Overview

MCP follows a client-server architecture with standardized JSON-RPC communication:

Core Components:

• MCP Hosts: Applications using LLMs (like Claude Desktop) that initiate connections
• MCP Clients: Protocol clients embedded within host applications
• MCP Servers: Lightweight programs exposing specific capabilities
• Transport Layer: Communication via standard I/O or HTTP with Server-Sent Events

Connection Lifecycle:

1. Client sends initialize request with protocol version and capabilities
2. Server responds with its protocol version and capabilities
3. Client sends initialized notification as acknowledgment
4. Normal message exchange begins using request-response patterns
5. Either party can terminate the connection through defined methods

4.2 Agent-Tool Binding

The process by which agents discover and connect to MCP tools:

Discovery Process:

• Tool Registry: Central repository of available MCP servers
• Capability Advertisement: Tools advertise their functions and requirements
• Dynamic Binding: Agents can discover and connect to tools at runtime
• Schema Validation: Ensuring compatibility between agent requests and tool capabilities

Binding Considerations:

• Rate Limits: Managing tool usage to prevent overload in scaling AI agent systems
• Authentication: Securing access to sensitive tools and data
• Error Handling: Graceful degradation when tools are unavailable in multi-agent architecture systems
• Caching: Optimizing performance through intelligent result caching

4.3 Security and Governance

Critical considerations for the production of multi-agent systems:

Security Measures:

• Authentication: Verifying agent and tool identities for secure multi-agent AI workflows
• Authorization: Controlling access to sensitive tools and data
• Sandboxing: Isolating tool execution to prevent security breaches
• Audit Logging: Maintaining comprehensive records of all interactions

Governance Framework:

• Tool Approval: Processes for validating and approving new tools in multi-agent AI frameworks
• Policy Enforcement: Automated compliance checking
• Access Control: Role-based permissions for different agent types in multi-agent architecture systems
• Monitoring: Real-time oversight of system behavior

5. Orchestration Patterns Inspired by Anthropic

5.1 Lead-Subagent Strategy

This pattern centralizes planning while decentralizing execution in AI agent collaboration frameworks:

Lead Agent Responsibilities:

• Strategic Planning: High-level task decomposition and resource allocation for multi-agent architecture systems
• Coordination: Managing subagent interactions and dependencies through agent coordination protocols
• Quality Assurance: Evaluating and integrating subagent outputs
• User Communication: Serving as the primary interface for user interactions

Subagent Characteristics:

• Tactical Execution: Focused on specific, well-defined tasks in LLM multi-agent architecture systems
• Tool Specialization: Access to domain-specific MCP tools
• Independent Operation: Minimal dependencies on other subagents for effective multi-agent collaboration
• Result Orientation: Clear success criteria and output formats

5.2 Interleaved Reasoning

Subagents employ continuous thinking and adaptation cycles:

Reasoning Loop:

1. Think: Analyze the current situation and available information
2. Act: Execute tool calls or other actions based on analysis
3. Reflect: Evaluate results and adjust strategy if needed
4. Iterate: Continue the cycle until objectives are met

Benefits:

• Adaptive Behavior: Agents can pivot based on intermediate findings in multi-agent workflows with MCP
• Quality Improvement: Continuous evaluation leads to better results
• Error Recovery: Problems can be detected and corrected early through AI agent collaboration
• Learning: Agents improve their performance over time

5.3 Extended Memory Handling

Managing context and memory across long-running processes:

Memory Strategies:

• Hierarchical Memory: Different levels of memory for different time horizons
• Selective Retention: Keeping only relevant information in active memory
• External Storage: Using MCP tools to persist important information
• Context Compression: Summarizing old information to make room for new

Implementation Techniques:

• Checkpointing: Regular saves of system state for recovery in multi-agent architecture deployments
• Context Windows: Managing the limited attention spans of individual agents
• Memory Tools: MCP tools specifically designed for information persistence in scaling AI agent systems
• Garbage Collection: Automated cleanup of outdated information

5.4 Prompt Engineering Rules

Effective prompting strategies for multi-agent coordination:

Lead Agent Prompting:

• Clear Delegation: Precise task descriptions with success criteria for multi-agent AI frameworks
• Resource Guidance: Information about available tools and capabilities
• Coordination Rules: How to manage subagent interactions through agent coordination protocols
• Quality Standards: Expected output formats and quality levels

Subagent Prompting:

• Role Definition: Clear understanding of specialized function in multi-agent architecture systems
• Boundary Setting: What is and isn't within scope
• Tool Usage: Specific guidance on MCP tool utilization for effective multi-agent collaboration
• Communication Protocols: How to report progress and results

Best Practices:

• Think Like Your Agents: Understand agent mental models to write effective prompts
• Scale Effort to Complexity: Provide appropriate resource allocation guidance
• Start Wide, Then Narrow: Encourage broad exploration followed by focused investigation
• Enable Self-Improvement: Allow agents to refine their approaches

6. Extending with A2A (Agent-to-Agent Protocol)

While MCP handles agent-tool interactions, A2A enables direct AI agent collaboration:

A2A Integration Scenarios

Peer-to-Peer Delegation:

• Complex tasks require negotiation between specialized agents in multi-agent AI frameworks
• Load balancing when certain agents become bottlenecks
• Knowledge sharing between agents with complementary expertise through multi-agent collaboration

Collaborative Problem Solving:

• Multi-step processes where agents must build on each other's work
• Consensus building when multiple agents need to agree on solutions
• Conflict resolution when agents produce contradictory results

Implementation Considerations

A2A Protocol Features:

• Agent Cards: JSON metadata describing agent capabilities
• Task Management: Structured approach to inter-agent work requests
• Conversation Flow: Standardized messaging patterns for agent communication

Complementary Architecture:

• MCP for tool access and data retrieval in scaling AI agent systems
• A2A for agent coordination and collaboration
• Lead Agent as the orchestrator of both protocols in multi-agent architecture designs

7. Evaluation & Observability

7.1 Reliability Strategies

Production multi-agent architecture systems require robust monitoring and error handling:

Logging and Monitoring:

• Tool Call Tracking: Comprehensive logs of all MCP interactions
• Agent State Management: Monitoring agent status and performance
• Version Control: Tracking system and tool versions for debugging
• Performance Metrics: Response times, success rates, and resource utilization

Recovery Mechanisms:

• Checkpointing: Regular state saves for system recovery in multi-agent AI frameworks
• Graceful Degradation: Continued operation despite individual agent failures
• Automatic Retry: Intelligent retry logic for transient failures in scaling AI agent systems
• Human Escalation: Pathways for human intervention when needed

7.2 Handling Non-Deterministic Behavior

Multi-agent architecture systems exhibit emergent behaviors that require special evaluation approaches:

LLM-as-Judge Evaluation:

• Rubric-Based Assessment: Structured evaluation criteria for complex outputs
• Comparative Analysis: Evaluating agent performance against baselines
• Multi-Criteria Scoring: Balancing accuracy, completeness, and efficiency
• Consistency Checking: Ensuring stable performance across similar tasks

Human-in-the-Loop Validation:

• Edge Case Detection: Identifying unusual scenarios missed by automated evaluation in multi-agent workflows with MCP
• Quality Assurance: Manual review of critical or high-stakes outputs
• Bias Detection: Identifying systematic biases in agent behavior through AI agent collaboration analysis
• User Experience Testing: Evaluating real-world usability and effectiveness

7.3 Performance Monitoring

Key metrics for multi-agent architecture system performance:

Operational Metrics:

• Token Usage: Monitoring computational costs across agents
• Response Times: End-to-end latency for different query types
• Success Rates: Task completion percentages by complexity level
• Tool Utilization: Efficiency of MCP tool usage

Quality Metrics:

• Output Accuracy: Correctness of agent-generated results
• Source Quality: Reliability and relevance of information sources
• Citation Accuracy: Proper attribution of claims to sources
• User Satisfaction: Feedback on result quality and usefulness

8. Use Cases & Applications

Research Copilots

Multi-agent architecture systems excel at comprehensive research tasks:

Architecture:

• Lead Agent for query analysis and strategy development
• Research Subagents for parallel information gathering
• Analysis Subagents for data synthesis and insight generation
• Citation Agent for source validation and formatting

Benefits:

• 90%+ faster research completion through parallel processing in multi-agent AI frameworks
• Comprehensive coverage of multiple information sources
• Automatic citation and source validation through secure multi-agent AI workflows
• Adaptive research strategies based on intermediate findings

Sample MCP Schema Implementation

Python

from fastmcp import FastMCP

# Create an MCP server
mcp = FastMCP("Multi-Agent Research Server")

@mcp.tool("search_documents")
async def search_documents(query: str, source_type: str = "academic") -> str:
    """Search for documents related to the query."""
    # Implementation would integrate with actual search systems
    return f"Search results for: {query} in {source_type} sources"

@mcp.tool("analyze_data")
async def analyze_data(data: dict, analysis_type: str) -> dict:
    """Perform analysis on provided data."""
    # Implementation would include actual analysis logic
    return {"analysis_type": analysis_type, "results": "processed_data"}

@mcp.resource("research_context")
async def get_research_context() -> str:
    """Get current research context and objectives."""
    return "Current research objectives and context information"

Financial Intelligence Agents

Complex financial analysis requiring multiple data sources:

System Components:

• Market Data Agents for real-time financial information
• Analysis Agents for quantitative and qualitative assessment
• Risk Assessment Agents for evaluating potential downsides
• Report Generation Agents for executive summaries

Capabilities:

• Portfolio analysis across multiple asset classes
• Real-time market monitoring and alert generation
• Regulatory compliance checking
• Investment recommendation generation

Automated Report Generation

Enterprise reporting systems with multi-source data integration:

Workflow:

• Data Collection Agents gathering information from various systems
• Processing Agents for data cleaning and standardization
• Analysis Agents for insight generation and trend identification
• Formatting Agents for professional report creation

Value Proposition:

• Significant time savings over manual report creation through multi-agent collaboration
• Consistent formatting and quality standards
• Real-time data integration from multiple sources via multi-agent workflows with MCP
• Customizable output formats for different audiences

Security Auditing Agents

Comprehensive security assessment across complex systems:

Agent Specialization:

• Network Security Agents for infrastructure assessment
• Application Security Agents for code and configuration review
• Compliance Agents for regulatory requirement checking
• Reporting Agents for executive and technical documentation

Advantages:

• Parallel assessment of multiple security domains through multi-agent architecture design
• Continuous monitoring and real-time threat detection
• Comprehensive audit trails and documentation via scaling AI agent systems
• Integration with existing security tools and workflows

Enterprise Knowledge Mining

Large-scale information extraction and analysis:

System Architecture:

• Content Discovery Agents for identifying relevant documents
• Extraction Agents for structured data retrieval
• Classification Agents for content categorization
• Synthesis Agents for knowledge graph construction

Business Value:

• Unlock insights from vast document repositories through LLM multi-agent architecture
• Automated knowledge base construction and maintenance
• Intelligent search and recommendation systems via AI agent collaboration
• Historical trend analysis and pattern recognition

9. Challenges and Limitations

Token Costs and Compute Resources

Multi-agent architecture systems are computationally expensive:

Cost Factors:

• Agents typically use 4x more tokens than simple chat interactions
• Multi-agent AI frameworks use approximately 15x more tokens than single-agent systems
• Parallel processing requires careful resource management in scaling AI agent systems
• Extended context windows increase computational overhead

Mitigation Strategies:

• Intelligent Caching: Reusing results across similar queries
• Selective Processing: Focusing computational resources on high-value tasks
• Model Optimization: Using appropriate model sizes for different agent roles
• Cost Monitoring: Real-time tracking and alerting for resource usage

Debugging Parallel Tasks

Traditional debugging approaches don't work well for multi-agent architecture systems:

Challenges:

• Non-deterministic behavior makes reproduction difficult
• Complex interaction patterns between agents
• Cascading failures that are hard to trace
• State synchronization issues across multiple agents

Solutions:

• Comprehensive Logging: Detailed traces of all agent interactions in multi-agent AI frameworks
• Visualization Tools: Graphical representations of agent workflows
• Replay Capabilities: Ability to recreate specific execution scenarios for AI agent collaboration analysis
• Staged Deployment: Gradual rollout of system changes

Agent Alignment and Redundancy

Ensuring agents work toward common objectives in multi-agent architecture deployments:

Alignment Issues:

• Agents pursuing conflicting optimization goals
• Redundant work when task boundaries are unclear
• Quality inconsistencies between different agents
• Coordination overhead reduces overall efficiency

Coordination Strategies:

• Clear Role Definition: Explicit boundaries and responsibilities for multi-agent collaboration
• Shared Context: Common understanding of objectives and constraints
• Regular Synchronization: Periodic alignment checks and adjustments in scaling AI agent systems
• Quality Standards: Consistent evaluation criteria across all agents

Schema Mismatches Across Tools

MCP standardization doesn't eliminate all integration challenges:

Common Issues:

• Different tools using incompatible data formats
• Version conflicts between tool interfaces
• Authentication and authorization complexity
• Performance variations across different tools

Management Approaches:

• Tool Standardization: Establishing common interface patterns
• Adapter Patterns: Translation layers for incompatible tools
• Version Management: Systematic approaches to tool updates
• Performance Testing: Regular evaluation of tool reliability and speed

Conclusion

The future of AI lies not in building bigger models, but in designing smarter, modular systems that collaborate. Multi-agent AI networks, powered by MCP-based integration and Anthropic-style orchestration, are reshaping what’s possible in scalable AI design.

By leveraging distributed intelligence, parallel processing, and autonomous coordination, organizations can unlock new levels of performance, resilience, and adaptability.

As complexity grows, so must coordination. Only multi-agent systems built on scalable, reliable architecture will keep pace with tomorrow’s AI demands.

Schedule a free strategy call with our AI solution architects to discuss real-world implementation options specific to your fintech product roadmap.
